Cat Crackers Hexmesh support lining, stainless steel 304H, 10mm thickness, 16gauge strips, 0.5X1.0m, Chinese Factory

Name: Cat Crackers Hexmesh support lining stainless steel 304H 10mm thickness 16gauge strips 05X10m Chinese Factory
Brand: HESLY
Price: 1 USD

Quality Cat Crackers Hexmesh support lining, stainless steel 304H, 10mm thickness, 16gauge strips, 0.5X1.0m, Chinese Factory for sale

Brand Name : HESLY

Model Number : HEX1015304H

Certification : ISO9001:2008

Place of Origin : HESLY Group, CHINA

MOQ : 50 SQM

Price : Negotiated according to the order

Payment Terms : T/T, L/C at sight, D/P, Western Union

Supply Ability : 800㎡/day

Delivery Time : according to the order (in stock)

Packaging Details : Pallet

construction type : clinched

bar shape : rectangular bar

primary material : stainless steel

Alloy, grade or type : AISI 304H

material finish : mill finish

product surface : smooth

sizes : 3'x10'

Contact Now

Cat Crackers Hexmesh support lining, stainless steel 304H, 10mm thickness, 16gauge strips, 0.5X1.0m, Chinese Factory

HESLY Hexmesh range is is a unique honeycombed steel designed to provide excellent retention and reinforcement of thin wall refractories. It fully complements dense hydraulic and chemically bonded refractories in resisting erosion.

Hesly metal mesh has been manufacturing hex mesh for wear resistant applications for more than 10 years, so we understand the strict performance and technical requirements that exist across a range of industries, such as petroleum refineries, Alumina calciners and cement plants.

Whether you need standard size panels, custom-shapes or rolled products, Antec has the equipment, expertise and experience to meet your needs quickly and cost-effectively.

Cat Crackers Hexmesh support lining, stainless steel 304H, 10mm thickness, 16gauge strips, 0.5X1.0m, Chinese Factory

Hexsteel: Bonding Hole Type

Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.

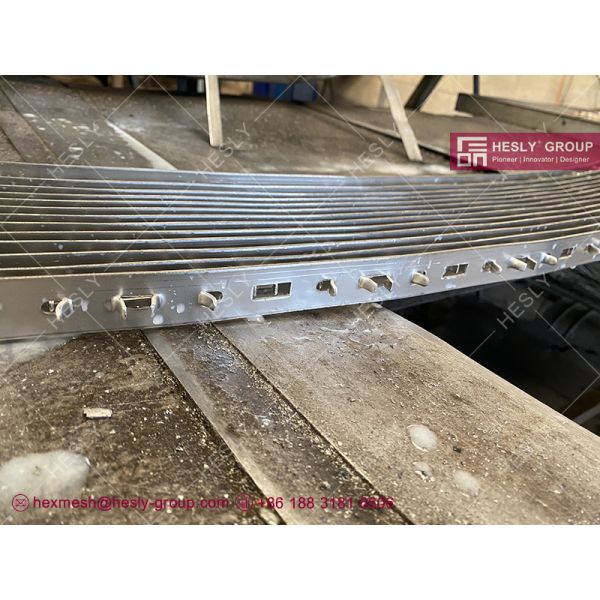

Hex-metal: Pronges/Lances Type

this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.

Application of HESLY Hex mesh grid

As refractories, hex steel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.
Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.

Typical Service Temperature

Anchorage Material		Chemical Composition								Typical Service Temperature
AISI	DIN	C%	Si%	Mn%	P%	S%	Cr%	Ni%	others	Typical Service Temperature
304	1.4301	≤0.08	≤1.00	≤2.00	≤0.45	≤0.30	18.0—20.0	8.0—10.0	N	800℃
316	1.4401/1.4436	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	16.0—18.0	10.0—14.0	N:Mo	800℃
321	1.4541	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	17.0—19.0	9.0—12.0	Ti	800℃
310S	1.4845	≤0.08	≤1.50	≤2.00	≤0.45	≤0.30	24.0—26.0	19.0—22.0	—	1150℃
Inconel 601	2.4851	≤0.10	≤0.50	≤1.00	—	≤0.15	21.0—25.0	58.0—63.0	Al:Cu	1200℃
Inconel 800	1.4876	≤0.10	≤1.00	≤1.50	≤0.45	≤0.15	19.0—23.0	30.0—35.0	Al:Ti	1200℃
410S	1.4001	≤0.08	≤1.00	≤1.00	≤0.40	≤0.30	11.5—13.5	≤0.60	—	750℃
CARBON STEEL		VARIOUS								550℃

Common Specification Sheet

ITEM	SPECS		B	A	AF
1	1.2 X 10 X 50mm		1.2mm	10mm	40mm
2	1.2 X 15 X 50mm		1.2mm	15mm	50mm
3	1.2 X 20 X 50mm		1.2mm	20mm	50mm
4	1.5 X 10 X 50mm		1.5mm	10mm	50mm
5	1.5 X 15 X 50mm		1.5mm	15mm	50mm
6	1.5 X 20 X 50mm		1.5mm	20mm	50mm
7	1.8 X 15 X 50mm		1.8mm	15mm	50mm
8	1.8 X 20 X 50mm		1.8mm	20mm	50mm
9	1.8 X 25 X 50mm		1.8mm	25mm	50mm
10	2.0 X 15 X 50mm		2.0mm	15mm	50mm
11	2.0 X 20 X 50mm		2.0mm	20mm	50mm
12	2.0 X 25 X 50mm		2.0mm	25mm	50mm
13	2.0 X 30 X 50mm		2.0mm	30mm	50mm
14	2.0 X 30 X 80mm		2.0mm	30mm	80mm
Remark	A/F	Min: 40mm Max: 100mm
	MATERIAL	A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S

Hexmetal Gallery

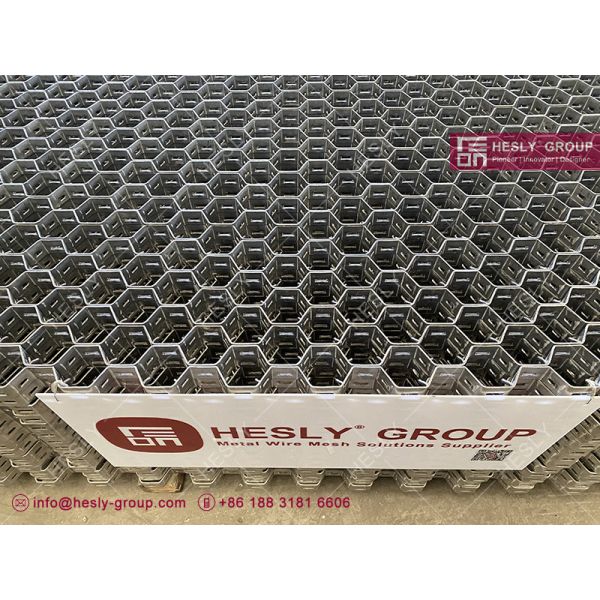

**Photo Gallery - HESLY Hexsteel Mesh**

Refractory Hexmesh Exporter	HESLY Hexmesh Factory

Hexmetal Mesh CHINA Factory	Hex Steel Mesh HESLY Brand

Package and Delivery


China Hexmesh Factory	China Hexmetal Exporter
